Welcome to the Surveillance Selection Guide 2013. This is the second time Hi-Tech Security Solutions is running this guide, but for 2013 we have moved it to the CCTV Handbook to ensure the products highlighted have year-round visibility.

This guide has also been slightly expanded. Instead of only highlighting different cameras (although these are by far the majority of the entries), we have also opened the door to software and services to provide insight into other critical areas of a surveillance solution.

One of the issues highlighted in many places in this year’s handbook is that a surveillance solution requires more than a good camera. If you want to gain the value and returns possible from a good surveillance system, you need to ensure you have the right camera, but also the right advice, plan, installer or integrator, network, management system and so on. Put them all together and you are away. One bad link, however, and the chain is broken. When this happens it is usually the camera that gets the blame, but most often it is a problem in one of the other areas.

As is always the case, we could not tell you everything about each camera or system listed, we already have 20 pages of options to choose from, but we have tried to highlight the main areas buyers will focus on. We have also included the contact details of the various suppliers in case you want to find out more.

One thing is sure, South Africa has an almost endless array of local and international options to choose from when it comes to surveillance products. Now if we could get all our installers and integrators skilled up and registered, the surveillance market would be a shining light in the security industry as a whole.

To view the .pdf version please click here.

________________________________________________________________________________

Category: IP, low-light, weatherproof 3MP, automatic, Day/Night switching, integrated IR illumination

Brand/Range name:IP Network Box Camera

Supplier: Dallmeier

Camera name: DF4910HD-DN/IR

Resolution:SD (up to D1), HD (720p, 1080p, 2MP, 3MP)

Auto/Manual focus: Motor-driven (controllable via Web browser)

Onboard storage: No

Onboard intelligence: Motion detection with selectable sensitivity. Alarm notification via DaVid protocol, e-mail and FTP image upload.

Standards supported: H.264, MJPEG

Description: Real-time Full HD video (1080p/30) using the H.264 standard. Comprehensive set of automatic image optimisation functions. Features automatic Day/Night operation supported by integrated ambient light sensing, a removable IR cut filter and an integrated homogeneous IR illumination (semi-covert 850 nm high power LEDs). The motor-driven megapixel vari-focal lens (F1.0 / 2.8 – 11 mm) is adjustable via Web browser.

Variations in range: None

Contact: Riaan Kruger, +27 (0)83 460 8015, dallmeiersa@dallmeier.com

________________________________________________________________________________

Name of software: SMAVIA Recording Server

Description: VideoIP server software for the recording of IP-based audio and video streams, designed for the installation on systems with Windows 7 operating system and suitable hardware equipment. The basic version with 4 IP based video channels can be expanded by up to 20 further IP channels using a licence code.

Features/functionality: Up to 24 video channels (SD-IP / HD-IP); Simultaneous real-time recording and real-time streaming; Simultaneous remote access, live display and playback with SMAVIA Viewing Client or via Ethernet (LAN / WAN); One access licence for SMAVIA Viewing Client included (basic licence); Video compression H.264, MPEG-4, MJPEG; Resolution SD (up to D1), HD (up to 1080p), megapixel (up to 8 MP); Recording of RTSP cameras optional; Compatible with management system SeMSy III; Configuration and recording of ONVIF compliant cameras in preparation; Connection to Active Directory via LDAP supported; Motion detection and SmartFinder for Dallmeier IP cameras; PRemote-HD in real-time.

Availability: Standalone: SMAVIA Recording Server (for Windows 7). Package: Preinstalled on SMAVIA Appliances (DMS 2400, DLS 1600, IPS 2400).

Cost: On request.

Runs in browser or as an independent application? Independent application

Standards the software adheres to: H.264, MPEG-4, MJPEG

Contact: Riaan Kruger, +27 (0)83 460 8015, dallmeiersa@dallmeier.com

________________________________________________________________________________

Category: Analogue WDR 700 TV line bullet camera

Brand/Range name: KEEPER CCTV

Supplier: Vision Consulting

Camera name: VCIR3160WDR

Resolution: 700TVL

Auto/Manual focus: Manual focus

Onboard storage: No

Onboard intelligence: Yes, OSD menu containing; camera name, lens control, exposure, day night setting, WDR, BLC , ECLPS function, white balance, 3D DNR, Effects (digital zoom, image freeze etc.), Special (motion detection, privacy masking, language, stabiliser, monitor type, L L sync.)

Standards supported: CE, FC & ROHS

Description: This is a wide dynamic range 700 TV line infrared bullet camera. It has a single LED array, which supports smart IR technology ( at night if a person approaches the camera the light will lessen so the face can be detected), also supports OSD menu and has an 8 x digital zoom capability.

Variations in range: The WDR series comes in a box type, indoor dome and outdoor vari-focal dome as well, all having the same functionality.

Contact: Ebrahim Choonara, +27 (0)11 830 2688, sales@viscon.co.za

________________________________________________________________________________

Category: Analogue 600 TV line DIS Camera

Brand/Range name: Keeper CCTV

Supplier: Vision Consulting

Camera name: VCDi 3155

Resolution: 600 TV lines

Auto/Manual focus: Manual focus

Onboard storage: No

Onboard intelligence: Yes. The camera comes with an LED array which has the smart IR function.

Standards supported: CE,FC & ROHS

Description: The DIS range has a new design, with 600 TVL DIS Chipset, high quality IR cut filter, 1pc third generation LED array, 40M IR range, 3.6mm lens, excellent day & night picture, waterproof IP66.

Variations in range : The DIS range comes in a bullet IR, indoor box IR and indoor dome IR as well.

Contact: Ebrahim Choonara, +27 (0)11 830 2688, sales@viscon.co.za

________________________________________________________________________________

Name of software: Digital Mobile Surveillance Software(DMSS)

Description/purpose: Dahua Surveillance Software DMSS, supports Android, iOS, Windows Phone and BlackBerry, symbian, support remote control Dahua devices.

Features/functionality: Individual menu selection; Add devices through DDNS; Alarm push function; Recording locally in Live preview and playback; Implement slow down, speed up, single frame play function in the playback panel; Emap view; Colour setting; Image playback function; Favourite group; Relay out function; Device & channel configuration setting

Availability: iOS v4.3, Android v3.0

Cost: Free/charged

Runs in browser or as an independent application? Independent application

Contact: overseas@dahuatech.com

________________________________________________________________________________

Category: IP

Brand/Range name:Dahua Technology

Supplier: Dahua Technology

Camera name: DH-IPC-HDW2100

Resolution: 1.3MP

Auto/Manual focus: Auto/manual

Onboard storage: No

Onboard intelligence: No

Standards supported: ONVIF Ver.2.0

Description: 1/3-inch 1.3 megapixel progressive scan Aptina CMOS; H.264 & MJPEG dual-stream encoding; Max 15fps@1.3M (1280×960) & 25/30fps@720P(1280×720); Day/Night (ICR), 2DNR, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; 3.6mm fixed lens (2.8mm, 6mm, 8mm optional); Max. IR LEDs Length 20m; IP66, PoE

Variations in range: 3.6mm fixed lens (2.8mm, 6mm, 8mm optional); DC12V, PoE (802.3af); Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

Contact: overseas@dahuatech.com

________________________________________________________________________________

Category: IP

Brand/Range name:Dahua Technology

Supplier: Dahua Technology

Camera name: Model: DH-IPC-HFW3200S

Resolution: 2 megapixel

Auto/Manual focus: Auto/manual focus

Onboard storage: No

Onboard intelligence: No

Standards supported: ONVIF Ver. 2.0

Description: 1/3-inch 2 megapixel progressive scan Exmor CMOS; H.264 & MJPEG dual-stream encoding; 25/30fps@1080P (1920×1080); DWDR, Day/Night (ICR), 2DNR, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; 6mm fixed lens (3.6mm, 8mm optional); Max. IR LEDs Length 20m; IP66, PoE

Variations in range: Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS

Contact: overseas@dahuatech.com

________________________________________________________________________________

Category: IP

Brand/Range name: Dahua Technology

Supplier: Dahua Technology

Camera name: Model: DH- IPC-K100/ K100A / K100W

Resolution: 1.3 MP

Auto/Manual focus: Auto/manual focus

Onboard storage: Yes, Max 32GB

Onboard intelligence: No

Standards supported: ONVIF Ver.2.0

Description: 1/3-inch 1.3 megapixel Aptina CMOS; H.264 & MJPEG dual-stream encoding; Max 15fps@1.3M (1280×960)/25/30fps@720P (1280×720); DWDR, Day/Night, 2DNR, Auto iris, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; 3.6mm fixed lens; White LEDs length 10m; PIR sensor range 6m; Micro SD memory Wi-Fi

Variations in range: Micro SD memory, Wi-Fi, Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

Contact: overseas@dahuatech.com

________________________________________________________________________________

Category: IP

Brand/Range name: Dahua Technology

Supplier: Dahua Technology

Camera name: Model: DH-IPC-HFW3200C

Resolution: 2 megapixel

Auto/Manual focus: Manual

Onboard storage: Yes, max 32GB

Onboard intelligence: Micro SD, max 32GB

Standards supported: ONVIF Ver.2.0

Description: 1/3-inch 2 megapixel progressive scan Exmor CMOS; H.264 & MJPEG dual-stream encoding; 25/30fps@1080P (1920×1080); DWDR, Day/Night (ICR), 2DNR, Auto iris, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; 3.3–12mm vari-focal lens; Built-in 2/1 alarm in/out; Max. IR LEDs length 20m; Micro SD memory, IP66, PoE

Variations in range: PoE (802.3af), Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS

Contact: overseas@dahuatech.com

________________________________________________________________________________

Category: IP

Brand/Range name: Dahua

Supplier: IP Security Solutions

Camera name: CC471 Dahua IP camera 1/2.8-inch 3.0 megapixel Sony Exmor CMOS Professional 1080

Resolution: 3.0 megapixel

Auto/Manual focus: Manual focus

Onboard storage: Micro SD, max 32GB

Onboard intelligence: No

Standards supported: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Description: 1/2.8-inch 3 megapixel progressive scan Exmor CMOS; H.264 & MJPEG dual-stream encoding; Max 20fps@3.0M (2048×1536) & 25/30fps @1080P (1920×1080); DWDR, Day/Night (ICR), 2DNR, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; Built-in 1/1 alarm in/out; PoE (not for –W series); Wi-F i (-W only); SD memory

Variations in range: CC470 Dahua IP camera 1/2.8-inch 2.0 mega-pixel Sony Exmor CMOS Professional 1080

Contact: Mel Labuschagne, +27 (0)11 553 3300, info@ipsecuritysolutions.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: Dahua

Supplier: IP Security Solutions

Camera name: CC465 Dahua IP Camera

Resolution: 2.0 megapixel

Auto/Manual focus: Auto focus

Onboard storage: Micro SD, max 32GB

Onboard intelligence: No

Standards supported: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter,, QoS, Bonjour

Description: 4.7mm ~ 94.0mm (20x) optical zoom; H.264 & MJPEG dual-stream encoding and JPEG image capture; Max 25/30fps@1080p resolution; WDR (DWDR), Day/Night (ICR), DNR (2D&3D),Auto iris, Auto focus, AWB, AGC,BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; Max 240°/s pan speed, 360° endless pan rotation; Up to 255 presets, 5 auto scan, 8 tour, 5 pattern: IR LEDs up to 100m

Variations in range: CC464 Dahua IP Camera PTZ 20x 2 MP Full HD H.264 Dome

Contact: Mel Labuschagne, +27 (0)11 553 3300, info@ipsecuritysolutions.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: Dahua

Supplier: IP Security Solutions

Camera name: CC434 Dahua IP camera

Resolution: 1.3 megapixel

Auto/Manual focus: Manual focus

Onboard storage: No

Onboard intelligence: No

Standards supported: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Description: 1/3-inch 1.3 megapixel progressive scan Aptina CMOS; H.264 & MJPEG dual-stream encoding; Max 15fps@1.3M (1280×960) & 25/30fps @720P (1280×720); Day/Night (ICR), 2DNR, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; 3.6mm fixed lens (2.8mm, 6mm, 8mm optional); Max. IR LEDs Length 20m; IP66, PoE

Variations in range: CC432 Dahua IP camera 1/3-inch 1.3 megapixel CMOS 3.6mm Mini Indoor Dome, 720p

Contact: Mel Labuschagne, +27 (0)11 553 3300, info@ipsecuritysolutions.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: Dahua

Supplier: IP Security Solutions

Camera name: CC418-1 Dahua IP camera 1/2.8-inch 3.0 mega-pixel Sony Exmor CMOS IR 30M vari-focal

Resolution: 3.0 megapixel

Auto/Manual focus: Manual focus

<i<>Onboard storage:</i> Micro SD, max 32GB

Onboard intelligence: No

Standards supported: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Description: 1/2.8-inch 3 megapixel progressive scan Exmor CMOS; H.264 & MJPEG dual-stream encoding; Max 20fps@3.0M (2048×1536) &25/30fps@1080P (1920×1080); DWDR, Day/Night (ICR), 2DNR, Auto iris, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; 3.3~12mm vari-focal lens; Built-in 2/1 alarm in/out; Max. IR LEDs length 20m; Micro SD memory, IP66, PoE

Variations in range: CC418 Dahua IP camera 1/2.8-inch 2.0 mega-pixel Sony Exmor CMOS IR 30M vari-focal

Contact: Mel Labuschagne, +27 (0)11 553 3300, info@ipsecuritysolutions.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: Dahua

Supplier: IP Security Solutions

Camera name: CC417 DAHUA IP CAMERA 1/3” 1.3 megapixel Aptina CMOS 20m IR Bullet 720p

Resolution: 1.3 megapixel

Auto/Manual focus: Manual focus

Onboard storage: No

Onboard intelligence: No

Standards supported: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour

Description: 1/3” 1.3Megapixel progressive scan Aptina CMOS; H.264 & MJPEG dual-stream encoding; Max 15fps@1.3M (1280×960) & 25/30fps@ 720P (1280×720); Day/Night (ICR), 2DNR, AWB, AGC, BLC; Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS; 3.6mm fixed Lens (6mm, 8mm optional); Max. IR LEDs length 20m; IP66, PoE

Variations in range: None

Contact: Mel Labuschagne, +27 (0)11 553 3300, info@ipsecuritysolutions.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: Dahua

Supplier: Regal Security

Camera name: CC280

Resolution: 600TVL

Auto/Manual focus: Fixed focus

Onboard storage: No

Onboard intelligence: Standard DSP with AGC, ATW, BLC

Standards supported: PAL video standard

Description: Indoor dome camera, 3.6mm fixed lens with 600TVL HDIS chip and DSP that supports AGC, ATW and BLC.

Variations in range: N/A

Contact: Mel Labuschagne, +27 (0)11 553 3300, info@ipsecuritysolutions.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: Dahua

Supplier: Regal Security

Camera name: CC270

Resolution: 600TVL

Auto/Manual focus: Fixed focus

Onboard storage: No

Onboard intelligence: Standard DSP with AGC, ATW, BLC

Standards supported: PAL video standard

Description: 50 metre infrared HDIS camera with 6mm lens, AGC, ATW and BLC, Weatherproof IP66 housing with bracket.

Variations in range: N/A

Contact: Mel Labuschagne, +27 (0)11 553 3300, info@ipsecuritysolutions.co.za

________________________________________________________________________________

Category: Indoor mini Dome camera with 4mm lens

Brand/Range name: DS-2CD7164-E

Supplier: Hikvision

Camera name: Mini dome

Resolution: 1.3 MP – HD720p

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: Motion, network disconnect

Standards supported: ONVIF, PSIA, CGI, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, FTP, 802.1x, QoS, HTTPS (SIP, SRTP, IPv6 optional)

Description: A small discreet vandal proof mini dome camera with fixed lens. Very cost effective and perfect for retail surveillance and similar well lit conditions. Surprisingly good image quality and unrivalled in its price range. Support 1 cabled installation with POE.

Variations in range: DS-2CD7153-E (2 MP option); DS-2CD7133-E (VGA option)

Contact: Rudie Opperman, PinnSec/Devtrade Distribution, +27 (0)21 550 0247, rudieo@pinnacle.co.za

________________________________________________________________________________

Category: Indoor 2 megapixel vari-focal infra-red mini dome

Brand/Range name: DS-2CD753F-EI

Supplier: Hikvision

Camera name: 2.0 megapixel vandal Infra-red network dome camera

Resolution: 2 MP – 1600x1200

Auto/Manual focus: Auto iris, 2.7-9mm @F1.2

Onboard storage: Built-in SD/SDHC slot, up to 32 GB

Onboard intelligence: Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception

Standards supported: ONVIF, PSIA, CGI, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, SNMP, HTTPS, FTP,802.1x, Qos (SIP, SRTP, IPv6 optional)

Description: A well balanced mini dome HD camera for multi-purpose indoor surveillance. This camera is versatile with its adjustable lens and would fit into a professional setup because of the onboard storage and supported protocols.

Variations in range: Standard on this model: 2 alarm in, 2 alarm out. 1-ch 3.5 mm audio MIC IN / LINE IN; 1-ch 3.5mm audio out (line level, 600 Ω)

Contact: Rudie Opperman, PinnSec/Devtrade Distribution, +27 (0)21 550 0247, rudieo@pinnacle.co.za

________________________________________________________________________________

Category: Outdoor, true Day/Night Infra-red, vari-focal cylindrical camera

Brand/Range name: DS-2CD8253F-EI

Supplier: Hikvision

Camera name: IR Bullet Camera

Resolution: 2 MP – 1600x1200

Auto/Manual focus: Auto iris 2.7-9mm @F1.2

Onboard storage: No

Onboard Intelligence: Motion detection, tampering alarm, network disconnect, IP address conflict, storage exception

Standards supported: ONVIF, PSIA, CGI, TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP(SNMP, HTTPS, FTP, SIP, SRTP, 802.1x, IPv6 optional)

Description: An all-purpose outdoor cylindrical camera with IR illumination and a vari-focal lens. This model includes a cable managed bracket and sun shield for all weather conditions. Support a one cabled solution with POE.

Variations in range: N/A

Contact: Rudie Opperman, PinnSec/Devtrade Distribution, +27 (0)21 550 0247, rudieo@pinnacle.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: Dahua

Supplier: Elvey Security Technologies

Camera name: DH-SD6436 network IR PTZ dome camera

Resolution: 600TVL 25/30fps@D1

Auto/Manual focus: Auto focus

Onboard storage: No

Onboard intelligence: Advance DSP, ICR, DNR, WDR, AWB, AGC, BLC, built-in Web server, 255 presents, 5 auto scan, 8 tours, 5 patterns

Standards supported: DH-SD, Pelco-P/D, auto recognition of general protocols

Description: SD6436-H is based on 600TVL, to provide the reliable video surveillance that is needed in large outdoor sites. Integrated day-and-night with 36X optical zoom. The SD6436-H feature ¼-inch Super HAD CCD II. Up to 24 different sized privacy zones. Continuous pan rotation to 360° and tilt movement to 90°. The SD6436-H can also be controlled remotely via RS-485. Maximum IR distance is over 60m.

Variations in range: N/A

Contact: Elvey Security Technology, Tasha Smith, +27 (0)11 401 6700, tasha.smith@elvey.co.za

________________________________________________________________________________

Category: IP Camera

Brand/Range name: Dahua

Supplier: Elvey Security Technologies

Camera name: IPC-HFW2100P

Resolution: 720p (1280x720), 1.3 MP (1280x960), D1 (704x576 / 704x480)

Auto/Manual focus: Auto

Onboard storage: Yes

Onboard intelligence: Built-in Web server, NVR, CMS (PSS/DSS) and DMSS, Mechanical D/N Filter, Super Back Light Compensation, Digital Noise Reduction, privacy zone selectable, Flickerless On/Off.

Standards supported: Conforms to the ONVIF standard.

Description: With a 6mm lens this high-definition IP camera with a 1/3-inch 1.3 Megapixel Aptina CMOS image sensor is capable of HD Resolution up to 1.3 MP (1280×960). IP66 rated for outdoor and indoor use. This camera also features PoE to allow for single cable connection, no need to run a separate power wire.

Variations in range: Lens Option: Default: 6mm (3.6mm /8mm optional) PoE

Contact: Elvey Security Technology, Tasha Smith, +27 (0)11 401 6700, tasha.smith@elvey.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: Shany

Supplier: Elvey Security Technologies

Camera name: MTC-WDL713EF-C

Resolution: Colour: 680TVL, B/W:700TVL

Auto/Manual focus: Auto

Onboard storage: No

Onboard intelligence: Yes. Sony Effio WDR, Wide Dynamic Range, Automatic Gain Control WDR; BLC, High Light Compensation, Sense Up, digital image stabiliser.

Standards supported: N/A

Description: 1/3-inch car licence plate pro camera (Sony Effio WDR). Colour, 680TVL, B/W:700TVL, 0.0001Lux (IR LEDs on at 2 Lux). Built-in aspherical D/N Lens (f3.8~9.5mm/f9~22mm); anti-headlight; mechanical IR cut filter. Powerful 512X WDR (54dB. high light compensation. 2D/3D noise reduction. Sense Up (512x). Digital image stabiliser, E-zoom function (1~256x). Advanced motion detection function; quadrangle mosaic privacy mask; water resistance: IP66

Variations in range: N/A

Contact: Elvey Security Technology, Tasha Smith, +27 (0)11 401 6700, tasha.smith@elvey.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: Bosch

Supplier: Elvey Security Technologies

Camera name: VEZ-413-EWCS

Resolution: 600 TVL

Auto/Manual focus: Auto

Onboard storage: No

Onboard Intelligence: Mechanical D/N filter, SBLC (super backlight compensation), DNR (digital noise reduction), privacy zone selectable, flickerless On/Off.

Standards supported: IP66, IEC 60529 (2001), IEC 60529 (2002).

Description: 26X optical zoom, high resolution 600TV lines, motion adaptive digital noise reduction (3DNR) technology. 360-degrees of rotation, 600 TVL (television lines), and WDR. The camera’s 26X optical zoom and 15 privacy zones. Maximum pan range of 360°/s and prepositioned pan speed of 360°/s and offers up to 210 presets, including 8 auto scan modes, 8 tours and 8 pattern modes.

Variations in range: N/A

Contact: Elvey Security Technology, Tasha Smith, +27 (0)11 401 6700, tasha.smith@elvey.co.za

________________________________________________________________________________

Category:Analogue Dual CCD with 600TVL

Brand/Range name: Trend Tech

Supplier: Crown Hyper

Camera name: TT-65

Resolution: 600

Auto/Manual focus: N/A

Onboard storage: N/A

Onboard Intelligence: N/A

Standards supported: PAL

Description: 1/3-inch Sony CCD (Colour), 1/3-inch Sony (B/W), 600 TVL, 0.5 Lux/F1.2 (LED OFF), 0 Lux (LED on), 16mm Lens IR Distance = 60m,PAL: 500(H) X 582(V), NTSC: 510(H) X 492(V).

Variations in range: N/A

Contact: Crown Hyperworld, +27 (0)11 830 1452, sales@crownhyperworld.co.za

________________________________________________________________________________

Category: Analogue 700TVL, vandal proof dome, OSD, 4-9mm

Brand/Range name: Trend Tech

Supplier: Crown Hyper

Camera name: TT_VD230

Resolution: 700TVL

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: No

Standards supported: PAL

Description: 1/3-inch Sony CCD 700TVL, 4-9mm Manual VF Lens, LED array and 25M IR distance, OSD operation function, vandal-proof casing, DNR, motion detection, white balance and mirror function.

Variations in range: N/A

Contact: Crown Hyperworld, +27 (0)11 830 1452, sales@crownhyperworld.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK-SMD222

Supplier: ZKTeco

Camera Name: IR dome

Resolution: 700TVL / 1020x596 (Effio-E)

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: No

Standards supported: PAL

<i?Description:</i> 3.6mm / 6mm Lens, backlight compensation, auto white balancing, wide dynamic range, on screen display, 25m night vision @ 0.001 LUX, dynamic noise reduction 2D, privacy masking, RS-485, auto gain control.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK – SIR222

Supplier: ZKTeco

Camera name: IR bullet

Resolution: 420TVL / 752x582

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: No

Standards supported: IP66, PAL

Description: Wide dynamic range, 3.6/6mm lens option, backlight compensation, IP66, 30m @ 0.1LUX, auto gain control.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK-SIR283F

Supplier: ZKTeco

Camera name: Dot Matrix Face

Resolution: 650TVL / 752x582

Auto/Manual focus: Auto

Onboard storage: No

Onboard intelligence: Yes, face list, face detection.

Standards supported: IP66, PAL

Description: 4mm / 6mm / 8mm, IP66, backlight compensation, auto white balancing, wide dynamic range, on screen display, 30m nightvision @ 0 LUX, HDNR, DNR3D, privacy masking, RS-485, auto face detection, auto iris control, dynamic face zoom, auto gain.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK-SIR288

Supplier: ZKTeco

Camera name: Dot Matrix 4

Resolution: 700TVL / 1020x596 (Effio-E)

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: No

Standards supported: IP66, PAL

Description: 12mm/16mm, IP66, backlight compensation, auto white balancing, wide dynamic range, onscreen display, 80m night vision @ 0.001 LUX, dynamic noise reduction 2D, privacy masking, RS-485, auto gain control.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK-SIR285

Supplier: ZKTeco

Camera name: Dot Matrix 2

Resolution: 700TVL / 1020x596 (Effio-E)

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: No

Standards supported: IP66, PAL

Description: 6mm / 8mm / 12mm, IP66, backlight compensation, auto white balancing, wide dynamic range, on screen display, 50m night vision @ 0.001 LUX, dynamic noise reduction2D, privacy masking, RS-485, auto gain control

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK-SIR283

Supplier: ZKTeco

Camera name: Dot Matrix 1

Resolution: 700TVL / 1020x596 (Effio-E)

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: No

Standards supported: IP66, PAL

Description: 4mm / 8mm / 16mm, IP66, bac light compensation, auto white balancing, wide dynamic range, on screen display, 30m night vision @ 0.001 LUX, dynamic noise reduction 2D, privacy masking, RS-485, auto gain control.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK-SSD

Supplier: ZKTeco

Camera name: IR PTZ

Resolution: 650TVL / 1020x596

Auto/Manual focus: Auto

Onboard storage: No

Onboard intelligence: No

Standards supported: PAL, Pelco-D, Pelco-P

Description: 5.5mm – 55mm Lens, 10x optical zoom, 255 presets, 360° Infinity Pan, 10 – 20m @ 0 LUX, BLC, 12V DC power, auto white balancing, RS-485

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: ZK-NVR

Supplier: ZKTecoSA

Camera name: NV

Resolution: 720P @ 25fps

Onboard storage: Yes – 10TB

Onboard intelligence: N

Standards supported: PAL, Pelco-P, Pelco-D

Description: H.264, G.711, HDMI, VGA, CVBS, BNC Spot, RS-485 for PTZ control, USB for backup and mouse control, alarm input and output, DDNS, eSATA, RJ45 Input (10/100).

Variations in range: 4 channel / 8 channel

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: ZK – IP 3

Supplier: ZKTeco

Camera name: Box IP

Resolution: 720P / 1280x720

Auto/Manual focus: Manual

Onboard storage: Yes – SD. 32 GB

Onboard intelligence: No

Standards supported: ONVIF

Description: 4 – 9mm vari-focal lens, H.264 MPL3, dual stream, wide dynamic range, bi-directional audio, PoE, motion detection, auto redundancy recording.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: ZK – IP 4

Supplier: ZKTeco

Camera name: Cube IP

Resolution: 720P / 1280x720

Auto/Manual focus: Manual

Onboard storage: Yes – TF 32 GB

Onboard intelligence: No

Standards supported: ONVIF

Description: 6mm fixed lens, H.264 MPL3, dual stream, wide dynamic range, onboard bi-directional audio, PoE, motion detection, auto redundancy recording, 20m night vision @ 0LUX, auto IR cut filter.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: ZK – IR 3

Supplier: ZKTeco

Camera name: IR Bullet IP

Resolution: 720P / 1280x720

Auto/Manual focus: Manual

Onboard storage: Yes – TF 32 GB

Onboard intelligence: No

Standards supported: ONVIF, IP66

Description: 6mm /12mm fixed lens, H.264 MPL3, dual stream, wide dynamic range, BiDi audio, PoE, motion detection, 15 ~ 30m night vision @ 0 LUX, auto redundancy recording, auto IR cut filter, IP66, RS485, alarm input + output.

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: ZK – MD 3

Supplier: ZKTeco

Camera name: IR Dome IP

Resolution: 720P / 1280x720

Auto/Manual focus: Auto

Onboard storage: Yes – TF 32 GB

Onboard intelligence: No

Standards supported: ONVIF, IP66

Description: 4 – 9mm vari-focal lens, H.264 MPL3, dual stream, wide dynamic range, bi-directional audio, PoE, motion detection, 15 ~ 20m night vision @ 9LUX, auto redundancy recording, auto IR cut filter, IP66, RS-485, alarm input + output.

Variations in range : N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: ZK – MD4

Supplier: ZKTeco

Camera name: Mini Dome IP

Resolution: 720P / 1280x720

Auto/Manual focus: Manual

Onboard storage: Yes – TF 32 GB

Onboard intelligence: No

Standards supported: ONVIF

Description: 6mm fixed lens, H.264 MPL3, dual stream, wide dynamic range, bi-directional audio, PoE, motion detection, auto redundancy recording.

Variations in range : N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Name of software: ZKiVision

Description/purpose: IVision Software is used to view all ZK cameras, DVRs and NVRs in an easy to use, one seat software.

Features/functionality: iVision brings great functionality to the market. The key feature of iVision is the facial recognition analytics. Paired with this is the ability to compare these recognised faces to a black list. Another key feature is the linkage ZKTeco have introduced which allows it to combine access control features like granting access to a facility based on their face as the credential. With the blacklist active, alarms and/or events can be generated. Some other features regarded as industry standard are also present, like Emap, independent 4-zone motion detection, backup scheduling, full camera control including PTZ control, footage history searching and camera setting manipulation. Footage history can also be searched by facial events using the relevant search filters.

Availability: Available with any ZK surveillance product

Cost: No per channel fee, but there is a charge for advanced analytics functionality such a facial recognition.

Runs in browser or as an independent application? This software is a standalone application

Standards the software adheres to:N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP. 3.1 megapixel/high definition/digital

Brand/Range name: Pelco Sarix

Supplier: Pelco

Camera name: Sarix IX30 IP Camera

Resolution: Up to 3.1 megapixel resolution (2048 x 1536)

Auto/Manual focus: Auto back focus

Onboard storage: Local storage (micro SD) for alarm capture

Onboard Intelligence: Yes, camera sabotage detects contrast changes in the field of view. Adaptive motion detection tracks objects that enter the field of view.

Standards supported: TCP/IP, UDP/IP (unicast, multicast IGMP),UPnP, DNS, DHCP, RTP, RTSP, NTP, IPv4,SNMPþv2c/v3, QoS, HTTP, HTTPS, LDAP(client), SSH, SSL, SMTP, FTP, and 802.1x (EAP)

Description: The Sarix IX30 is a 3.1 megapixel, day/night camera with advanced low-light technology and a mechanical IR cut filter for increased sensitivity in low-light installations. Sarix technology defines the next generation of video security imaging performance, delivering high definition (HD) resolution, advanced low light capabilities, consistent colour science, and fast processing power. The H.264 compression video files are considerably smaller, making HD video more affordable.

Variations in range: The IX30 support two simultaneous video streams. The two streams can be compressed in MJPEG and H.264 formats across several resolution configurations. The IX30 features built-in Power over Ethernet (PoE) IEEE 802.3af, which supplies power to the camera over the network, eliminating the need for a separate power supply. If PoE is not available, 24 VAC can be used to power the camera.

Contact: Abie Ali, +27 (0)11 496 2300, sales@frankstreet.co.za

________________________________________________________________________________

Category: Analogue

Brand/Range name: ZK-DV

Supplier: ZKTeco

Camera name: DVR

Resolution: CIF @ 400fps / DI @ 50fps

Auto/Manual focus: N/A

Onboard storage: Yes, 5 TB

Onboard intelligence: No

Standards supported: PAL

Description: H.264, G711, RCA audio output, audio input, VGA + BNC video out, video backup, RJ45 Out, USB mouse + backup ports, mobile preview support, DDNS support, RS-485 for PTZ control, 4ch, 8ch, 16ch

Variations in range: N/A

Contact: Andrew Levell-Smith, +27 (0)12 259 1047, andrew@zkteco.co.za

________________________________________________________________________________

Category: IP. 3.1 megapixel/ high definition

Brand/Range name: X-Gen IP

Supplier: Gen Security

Camera name: GEN HD IP 3 megapixel IR outdoor camera

Resolution: Up to 3.1 megapixel resolution, 2144(H) x1588(V)

Auto/Manual focus: Auto

Onboard storage: No

Onboard intelligence: Yes, this latest line includes the latest WDR (Wide Dynamic Range). These cameras are progressive-scanning to handle moving objects.

Standards supported: TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP, HTTP, DHCP, FTP, SMTP, DNS, DDNS. Streaming RTP over RTSP, Unicast RTP, Multicast RTP, ONVIF ver2.0 support, DDNS A&T DDNS support (iplinker.net)

Description: GEN HD IP camera has a resolution of 2144 x 1588 and is almost 10X better than an image of D1(704 x 480i) which is the max resolution of an analogue camera recorded DVR. It has the best sensitivity in the world with 0.0002lux. Sens-up 60X in B/W with an HD image sensor and various streaming.

Variations in range: Various streaming: H.264 /MPEG4 /MJPEG triplex streaming (Individual streaming simultaneously).

Contact: Abie Ali, +27 (0)11 496 2300, sales@frankstreet.co.za

________________________________________________________________________________

Name of software: ROM – Retail Operations Management

Description/purpose: ROM is a software package designed for Retail Operations Management. It uses existing cameras, traditionally used for loss control, for the dual purpose of operational management. This is done by using video analytics to monitor queues and customer flow through the retail operation.

Features/functionality: ROM consists of three function modules. CPM is the Cashier Performance Monitoring module which monitors the performance of the cashiers and scores them relative to a performance index. QM is the Queue Management module which monitors queue lengths and customer progress through the queue. CFM is the Customer Flow Monitoring module which monitors customer flow patterns through the establishment. These modules combined provide an effective management tool which enables the retailer to plan and monitor cashier staff, customer service staff and store layout for maximum effectiveness. An advanced graphical reporting system provides an automated report service which allows the retailer to measure store performance automatically and at a glance.

Availability: Standalone/network based software package. Operates as an added feature on Nuuo or Pelco CCTV systems.

Runs in browser or as an independent application? Independent Application

Standards the software adheres to:N/A

Contact: Abie Ali, +27 (0)11 496 2300, sales@frankstreet.co.za

________________________________________________________________________________

Category: IP

Brand/Range name: Dynacolor W2

Supplier: Dynacolor

Camera name: Dynacolor W2 2MP IP Dome

Resolution: 1920X1080 (Full HD).

Auto/Manual focus: Auto focus, P-Iris allows for better depth of field.

Onboard storage: Yes, removable SD Card (up to SD card max capacity).

Onboard intelligence: Yes, motion detection, network failure, smart IR detect (auto).

Standards supported: ONVIF compliant, H.264 and MJPEG encoding.

Description: A versatile IP66 rated PoE dome with audio channel fit for service in any condition. The high quality 2MP image sensor with motorised zoom gives great detail while wide dynamic range compensates for changing light conditions. ONVIF support allows for easy integration and quad streams allow for multiple resolutions to be broadcasted. An SD card can beused for on-board recording.

Variations in range: Available in 3.6mm fixed lens with no IR, 3.3-9mm vari-focal with no IR, and 3.3-9mm vari-focal lens with 25m onboard IR LEDs. Vandal proof also available

Contact: Security Warehouse, +27 (0)12 653 1005, marketing@securitywarehouse.co.za

________________________________________________________________________________

Name of software: Digi-IT NVR/DVR software

Description/purpose: Digi-IT’s recording software is suitable for both analogue, IP and hybrid systems. The software runs on the Windows operating system, with easy installation and an easy–to-understand interface. Analogue decoding is done through Digi-IT’s analogue cards. As an open platform NVR a wide range of IP cameras are supported by default.

Features/functionality: The software comes standard with recording (video, audio, POS and limited VCA), event (motion, audio, POS etc.), search, point of sales, and scheduling (for recording) functionality. Remote login and viewing is possible via Web browser or free bundled RMS software for Windows or smart phone (for all the popular OSs including Android, Symbian, Windows Mobile and iOS). The software can further be expanded with licences for full VCA (video content analytics), LPR (licence plate recognition) and CMS (central monitoring system). Multiple resolutions are supported, with multi-streaming available for IP cameras. PTZ control is integrated in the software allowing the user to control the PTZ as well as set up multiple touring sequences.

Availability: The software is free bundled with Digi-IT analogue cards, IP cameras require a licence per video channel (available in 4,8,16,32 and 64 channel packages or a combination thereof). Digi-iT IP cameras do not require any licence keys and have the full NVR capability.

Cost: For IP systems: 4 Channel: R3600 (Retail excl. VAT); 8 Channel: R5600 (Retail excl. VAT); 16 Channel: R9800 (Retail excl. VAT); 32 Channel: R18000 (Retail excl. VAT); 64 Channel: R34000 (Retail excl. VAT)

Runs in browser or as an independent application? Independent software

Standards the software adheres to: Software adheres to: FCC rules: Class A digital device.

Contact: Security Warehouse, +27 (0)12 653 1005, marketing@securitywarehouse.co.za

________________________________________________________________________________

Category: IP. Maximum 1.3 MP resolution (1280 x 1024), multiple streaming

Brand/Range name: Samsung LiteNet

Supplier: ADI Global Distribution

Camera name: SND-7011

Resolution: Maximum 3 MP resolution (2048 X 1536)

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: Tampering alarm, motion detection

Standards supported: ONVIF 2.1

Description: This cost effective 1.3 MP high definition network camera is a great fit for applications which require high resolution video. The SNB-5001 features contrast enhancement and day/night capabilities for challenging lighting conditions, and is equipped with high-end functionalities such as tampering detection and motion detection.

Variations in range: Central management software NET-i viewer , 12V DC, PoE (IEEE802.3af, Class2); Lens Type: Manual / DC Auto Iris

Contact: ADI Global Distribution, gordon.moore2@adiglobal.com

________________________________________________________________________________

Name of software: Axis Camera Families for Autodesk Revit

Description/purpose: It provides 3D camera models to illustrate what the camera set-up will look like in real life and which areas the surveillance system will cover once installed.

Features/functionality: The software allows them to see exactly how the cameras fit into the building layout and to easily detect if views are obstructed by columns or walls, to help reduce unexpected blind spots. This means security system planning can now be completed as an integrated part of the building design, integrating into the same tool flow that is used for the rest of the building design. Users of the CAD system can also access information about each camera such as the model number, mounting accessories, power consumption and resolution.

Availability: The Axis Camera Families for Autodesk Revit are available free of charge for existing Axis Partners. The vast majority of Axis Network Cameras are included.

Cost: N/A

Runs in browser or as an independent application? N/A

Standards the software adheres to: N/A

Contact: Roy Alves, Axis Communications, +27 (0)11 548 6780, roy.alves@axis.com

________________________________________________________________________________

Category: IP, SD PTZ, true day/night

Brand/Range name: equIP

Supplier: ADI Global Distribution

Camera name: HDZ30X

Resolution: 720 x 576

Auto/Manual focus: N/A

Onboard storage: N/A

Onboard intelligence: N/A

Standards supported: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, IEEE 802.1x, QoS, ONVIF.

Description: Camera tamper detection. Video motion detection. Digital Noise Reduction. PSIA Support Progressive scan.

Variations in range: 0,08 lux (colour) 0,005 lux (B/W) @F1.6, 30IRE. 24 VAC ±10%, en PoE+, (IEEE 802.3at-2009).

Contact: ADI Global Distribution, gordon.moore2@adiglobal.com

________________________________________________________________________________

Category: IP

Brand/Range name: equIP

Supplier: ADI Global Distribution

Camera name: HDZ20HDX

Resolution: 1920 x 1080

Auto/Manual focus: N/A

Onboard storage: N/A

Onboard intelligence: N/A

Standards supported: IPv4/v6, TCP/IP, UDP, RTP, RTSP, HTTP, HTTPS, ICMP, FTP, SMTP, DHCP, PPPoE, UPnP, IGMP, SNMP, IEEE 802.1x, QoS, ONVIF.

Description: Camera tamper detection. Video motion detection. Digital Noise Reduction. PSIA Support Progressive scan

Variations in range: 0.05 lux (colour)/0.01 lux (B/W), @F1.6, 30 IRE. 24 VAC ± 10%, and PoE+ (IEEE 802.3at-2009).

Contact: ADI Global Distribution, gordon.moore2@adiglobal.com

________________________________________________________________________________

Category: Thermal analogue PTZ camera

Brand/Range name: Bosch Thermal

Supplier: Bosch Security Systems

Camera name: MIC-612TIALG36P

Resolution: PAL: 320 x 256; PAL: 640 x 512

Auto/Manual focus: Auto focus

Onboard storage: No

Onboard intelligence: High-performance camera with simultaneous thermal/optical video output.

Standards supported: Multiple protocols, including Bosch 'Biphase (OSRD)', 'Bilinx' and Pelco 'P' and 'D'.

Description: When powered by a MIC IP power supply, the MIC camera becomes an IP-enabled device with extra features such as intelligent video analysis (IVA), and the ability to record video on a network-attached RAID iSCSI storage device or locally on a user-supplied SD or SDHC card (32 GB maximum). The optional hybrid operation provides video and control of the MIC camera over both analogue and IP.

Variations in range: Analogue and IP versions

Contact: Edward Seaborne, +27 (0)11 651 9898, edward.seaborne@za.bosch.com

________________________________________________________________________________

Category: Analogue mini dome

Brand/Range name: Bosch outdoor mini dome advantage line

Supplier: Bosch Security Systems

Camera name: VDC-242V03-1

Resolution: 650TVL

Auto/Manual focus: Manual focus

Onboard storage: No

Onboard iIntelligence: Privacy zones and motion detection functions can be set up in the camera menu system.

Standards supported: Composite: 1 Vpp, 75 Ohm

Description: Static analogue mini outdoor dome camera (720TVL sensor); Day/Night camera (VDN) 0.12 lx (colour) 0.07 lx (B/W); Motion detection on, off (4 programmable zones); Privacy on, off (4 programmable zones)

Variations in range: 976 x 582 (PAL), 976 x 494 (NTSC)

Contact: Edward Seaborne, +27 (0)11 651 9898, edward.seaborne@za.bosch.com

________________________________________________________________________________

Category: IP Autodome HD

Brand/Range name: Bosch IP HD Autodome 800 Series

Supplier: Bosch Security Systems

Camera name: VG5-836-ECEV

Resolution: 1920x1080

Auto/Manual focus: Auto focus

Onboard storage: No

Onboard intelligence: The AutoDome utilises the built-in Intelligent Video Analytics (IVA) to continuously follow an individual or an object. Intelligent Tracking feature and Wide Dynamic Range

Standards supported: Bosch (OSRD), ONVIF. RTP, Telnet, UDP, TCP, IP, HTTP, HTTPS, FTP, DHCP, IGMP V2/V3, ICMP, ARP, SMTP, SNTP, SNMP, RTSP, 802.1x, iSCSI, DynDNS, UPnP, Advanced Networking IPv6. H.264 (ISO/IEC 1449610), MJPEG, JPEG

Description: Individually configurable streams in H.264 and MJPEG, configurable frame rate and bandwidth.

Variations in range: Indoor/outdoor

Contact: Edward Seaborne, +27 (0)11 651 9898, edward.seaborne@za.bosch.com

________________________________________________________________________________

Name of company: CCTV Security Surveillance

Description of services provided: CCTV Security Surveillance is a South African company, servicing the markets nationally. The company specialises in electronic security systems including, but not limited to CCTV, access control, fire detection and alarm systems, not only in the area of security but also in production, productivity and reviewing. CCTV services the commercial and industrial market. Each client is seen as an individual, with specific requirements, and as such each system is developed around the client’s needs. In addition, CCTV offers an offsite reviewing service whereby the client is able to download footage which can be independently reviewed.

Special skills/features/functionality available to customers: CCTV reviews client’s footage, offsite, and provides a detailed report on activities. The client can pinpoint which positions / areas need more care. A random selection is downloaded by CCTV and the footage is reviewed, and after consultation the client would then determine what search criteria is to be concentrated on.

Market size addressed: SME/mid-size companies/ large companies/enterprise.

Case studies / references available: Minimise shrinkage; Additional security; Assistance with human resources; Monitors health and safety regulations

Contact: CCTV Security Surveillance, 086 100 2288, cctv@cctvsa.co.za

________________________________________________________________________________

Name of company: CCTV Security Surveillance

Description of services provided: CCTV Security Surveillance is a South African company, servicing the markets nationally. The company specialises in electronic security systems including, but not limited to, CCTV, access control, fire detection and alarm systems, not only in the area of security but also in production, productivity and reviewing. CCTV services the commercial and industrial market. Each client is seen as an individual, with specific requirements, and as such each system is developed around the client’s needs. In addition to the above, CCTV offers maintenance contracts on all electronic security equipment.

Special skills/features/functionality available to customers: CCTV offers maintenance contracts on all electronic security equipment. This includes all call out and labour fees, loan equipment for while your equipment is in for repairs and quarterly servicing of your system.

Market size addressed: SME/mid-size companies/ large companies/enterprise

Products supported/promoted: All electronic security systems are able to carry a maintenance contract.

Contact: CCTV Security Surveillance, 086 100 2288, cctv@cctvsa.co.za

________________________________________________________________________________

Name of company: CCTV Security Surveillance

Description of services provided: CCTV Security Surveillance is a South African company, servicing the markets nationally. The company specialises in electronic security systems including, but not limited to, CCTV, access control, fire detection and alarm systems, not only in the area of security but also in production, productivity and reviewing. CCTV services the commercial and industrial market. Each client is seen as an individual, with specific requirements, and as such each system is developed around the client’s needs. In addition to the above, CCTV offers full maintenance and repair rental contracts on all electronic security equipment.

Special skills/features/functionality available to customers: CCTV offers full replacement and repair rental contracts on all new electronic security systems installed by CCTV Security Surveillance. Contracts are offered over 36, 48 or 60 months. They include installation fees, the rental fee of the equipment, all call out and labour fees. Loan equipment is provided while repairs are being undertaken, and the systems are serviced quarterly.

Market size addressed: SME/mid-size companies/ large companies/enterprise.

Products supported/promoted: All electronic security systems are available on a full replacement and repair rental option.

Contact: CCTV Security Surveillance, 086 100 2288, cctv@cctvsa.co.za

________________________________________________________________________________

Category: IP, Vandal proof 1/3”CMOS full HDplus Day/Night IP fixed dome

Brand/Range name: TopLine cameras

Supplier: Geutebrück GmbH

Camera name: TopFD-2233

Resolution: 160 x 120 up to 1920 x 1440 pixels

Auto/Manual focus: Auto focus (One push AF function)

Onboard storage: 32 MB Flash

Onboard intelligence: Multimedia video processor, FPGA, 256 MB RAM

Standards supported: H.264CCTV (Geutebrück), MJPEG (multiple compression levels), Standard H.264 (in combination with third party systems). ONVIF compatible with firmware version 3.9.0.

Description: Vandal proof 1/3-inch CMOS full HDplus Day/Night IP fixed dome with AF vario-focal lens 2,8 mm to 10 mm and dual-streaming in H.264CCTV, MJPEG and MPEG4 for Geutebrück systems. Automatic: mouse click focusing; white balance, exposure, electronic shutter, back light compensation, flickerless and automatic gain control. Including: text overlay, motion detection, privacy masking, mirror-function, electronic PTZ function, POE.

Variations in range : This range of German-made cameras includes box and dome formats with the following options; colour only / day/night cameras; with AF / without AF; with housings for different environments; 1/1.8-inch CCD, 1/3-inch CCD, 1/3-inch CMOS and ½-inch CMOS sensors; 720p, Full-HD, Full-HDplus, 1.3, 2 & 5 megapixel resolutions

Contact: Carmen Lahr, +49 26 45 137 0, carmen.lahr@geutebrueck.com

________________________________________________________________________________

Category: Analogue HD SDI

Brand/Range name: Provision ISR

Supplier: Hitek Security Distributors

Camera name: DI-390HDVF

Resolution: 1080P or 2.1 MP

Auto/Manual focus: Auto focus 2.8-100mm lens

Onboard storage: No

Onboard intelligence: Yes. Motion detection

Standards supported: HD SDI

Description: The DI-390HDVF is a dome HD SDI camera with1080P resolution and a vari-focal lens of 2.8-12mm. The DI-390HDVF belongs to the analogue HD technology which is equivalent to a 2.1 MP if we compare it to an IP camera.Variations in range: In the analogue HD we have another 3 models: 1. BX-390HD – Box camera with 1080P resolution. 2. I2-390HDVF features 2.8-10mm Mega Pixel lens and IR range of 25m, water proof and with 1080P Resolution. 3. I4-390HDVF features 2.8-12mm Mega Pixel lens with IR range of over 40m, water proof and with 1080P Resolution.

Contact: Hitek Security Distributors 087 625 0810, info@hiteksecurity.net

________________________________________________________________________________

Category: Analogue

Brand/Range name: Provision ISR

Supplier: Hitek Security Distributors

Camera name: BZ-472CSX22

Resolution: 650TVL

Auto/Manual focus: Auto focus X22 zoom 3.7-81.4mm

Onboard storage: No

Onboard intelligence: No

Standards supported: RS-485

Description: The BZ-472CSX22 is a professional zoom camera from Provision ISR. It Features 22X optical zoom, auto focus, 2D DNR, HLC and OSD. It also comes with a 3-year swap out guarantee.Variations in range :In the zoom camera range we also have the BZ-371CSX22 which has a 1/3-inch Sony Effio 650TVL sensor with a True ICR.

Contact: Hitek Security Distributors 087 625 0810, info@hiteksecurity.net

________________________________________________________________________________

Category: IP. High resolution IP65 camera for day and night operation

Brand/Range name: Mobotix

Supplier: Industrial Automation And Control

Camera name: MX-M12D-SEC-DNIGHT-D43N43

Resolution: 3 MP (2048 x 1536)

Auto/Manual focus: Auto

Onboard storage: Yes, internal DVR (up to 64 GB), recording without network load.

Onboard intelligence: Yes, video motion analytics, onboard microphone, speaker, VoIP, SIP, FTP, temperature sensor, PIR

Standards supported: EMC (EN55022, EN55024, EN61000-6-2, FCC part15B,AS/NZS3548), IEEE 802.3af; Class 0IP65 (DIN EN 60529), -30 to +60 °C (-22 to +140 °F)

Description: Two separate image sensors for day and night-time operation; Integrated DVR with HiRes video recording; Permanently fixed lenses at factory for extremely simple installation; Robust, low-maintenance and with concealed cable duct; Weatherproof from -30 to +60°C (-22 to +140°F), without need for heating (IP65); Digital continuous zoom, pan and tilt; Integrated microphone, speaker and PIR motion detector

Variations in range: Lenses: 22 to 135 mm format, horizontal angle 90° to 15°. Software: (inclusive) MxEasy,Control room software MxControlCenter. External storage: Directly on NAS and PC/Server without additional recording software

Contact: Raine Sadie, +27 (0)12 657 3600, raine@iacontrol.co.za

________________________________________________________________________________

Category: IP. Hemispheric 360° all-round view for complete room monitoring

Brand/Range name: Mobotix

Supplier: Industrial Automation And Control

Camera name: MX-Q24M-SEC-D11

Resolution: 3 MP (2048 x 1536)

Auto/Manual focus: Auto

Onboard storage: Yes, Internal DVR (up to 64 GB), recording without network load.

Onboard intelligence: Yes, video motion analytics, on board microphone, speaker, VoIP, SIP, FTP, Temperature Sensor

Standards supported: EMC (EN50121-4, EN55022, EN55024, EN61000-6-2,FCC part15B, AS/NZS3548) IEEE 802.3af; Class 0, IP65 (DIN EN 60529), -30 to +60°C (-22 to +140°F)

Description: Complete panorama view, ideal for access control; Quad view to show images from four different angles simultaneously; Digital, continuous zooming and panning; Robust and maintenance-free, without mechanically moving parts; MxAnalytics: heatmap, people counting and fully automatic reports; Alarm function, speaker and microphone integrated

Variations in range: Lenses: L11 (hemispherical), L22 (90° x 67°); Software: (inclusive) MxEasy, Control room software MxControlCenter; External storage: Directly on NAS and PC/Server without additional recording software

Contact: Raine Sadie, +27 (0)12 657 3600, raine@iacontrol.co.za

________________________________________________________________________________

Category: 2 MP Full HD P-iris focus assist WDR network camera

Brand/Range name: 8000 Series fixed camera

Supplier: Vivotek

Camera name: IP8162P

Resolution: 2 megapixel (1920x1080)

Auto/Manual focus: Manual focus

Onboard storage: Yes (MicroSD/SDHC/SDXC card slot) 2 TB max.

Onboard intelligence: Video motion detection, camera tampering detection.

Standards supported: H.264, MJPEG, MPEG-4, ONVIF, 802.3af, IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

Description : The Vivotek IP8162P camera offers 2-megapixel resolution (1080p full HD @ 30fps). The camera can capture a much more comprehensive area than a standard VGA camera, significantly reducing the number of cameras required. It is especially suitable for monitoring wide-open indoor spaces such as building entrances, airports, or applications requiring accurate identification. With a P-iris lens, which controls the iris with extreme precision with its built-in stepping motor, it maintains the iris opening at an optimal level at all times, resulting in superior image clarity and depth of field as well as image quality.

Variations in range: IP8172P, IP8162P, IP8151P, IP8152, IP8133

Contact: Alex Bantjes, +27 (0)12 657 0960, alex@miro.co.za

________________________________________________________________________________

Name of software: Vivotek VAST

Description/purpose: Vivotek provides a feature-rich central management software platform that has been developed specifically for Vivotek products. VAST allows for centralised management of multiple cameras on one central platform. Additionally Vivotek VAST provides a fully featured user interface that is easy to use.

Features/functionality: Vivotek VAST utilises a client/server structure which allows for multiple servers and clients to be combined into a single platform. Vivotek VAST is the ideal cost effective surveillance solution that has been designed to scale up to any requirement while still remaining user friendly and flexible. Utilising features that would normally only be available on very costly VMS platforms, VAST is the ideal solution for any surveillance application.

Availability: Vivotek VAST is a software-based platform primarily, but is also available on Vivotek’s ND range of NVRs.

Cost: VAST has a once off price structure that does not require any annual fees or upgrade costs.

Runs in browser or as an independent application? VAST operates as a Windows application.

Standards the software adheres to: ONVIF, PSIA and a broad range of standards that make integration possible.

Contact: Alex Bantjes, +27 (0)12 657 0960, alex@miro.co.za

________________________________________________________________________________

Name of software: Milestone Software

Description/purpose: Milestone Software has been developed to be a complete surveillance platform that supports a large variety IP cameras and devices. Milestone also provides a complete managementplatform that allows for the integration of hundreds of different devices while using a flexible and easy to use user interface.

Features/functionality: Milestone is an IP video management software platform that has been designed to allow for maximum flexibility and integration. With an open platform design, Milestone software allows for hundreds of different devices from multiple vendors to be integrated into a single platform. A flexible rule-based system combined with powerful video motion detection allows for a vast number of actions to be taken based on user-selected conditions. Milestone has been developed specifically to scale up to any size and in hundreds of different layouts. From home based solutions to enterprise environments, Milestone is the VMS to use.

Availability: Milestone Software is a complete software package that relies on a Windows platform for operation.

Cost: Milestone has a broad pricing structure that stretches across a wide range of products and which will meet any demand.

Runs in browser or as an independent application? Milestone can be used in a Web-based environment but the core software has been developed to function as an independent application.

Standards the software adheres to: ONVIF, PSIA and a broad range of standards that make integration possible.

Contact: Alex Bantjes, +27 (0)12 657 0960, alex@miro.co.za

________________________________________________________________________________

Category: 20x zoom, 2 MP full HD WDR, 60 fps PoE Plus camera

Brand/Range name: 8000 Series Speed Dome

Supplier: Vivotek

Camera name: SD8362E

Resolution: 2 megapixel (1920x1080)

Auto/Manual focus: Auto & manual focus

Onboard storage: Yes (MicroSD/SDHC/SDXC card slot) 2 TB max.

Onboard intelligence: Video motion detection, camera tampering detection

Standards supported: H.264, MJPEG, MPEG-4, ONVIF, 802.3af, IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

Description: The SD8362E is part of the Supreme series product line offering 2 megapixel or 1080p resolution with superb image quality (up to 60 fps @ 720p and 30 fps @ 1080p). Integrated WDR technology, the SD8362E can also cope with challenging lighting conditions. Adopting a 20x optical zoom lens, the SD8362E is able to capture details at top-notch quality. The camera is especially suitable for monitoring wide-open indoor/outdoor spaces such as airports, highways and parking lots where high-level reliability and precision are always required.

Variations in range: SD8323E, SD8322E, SD8321E

Contact: Alex Bantjes, +27 (0)12 657 0960, alex@miro.co.za

________________________________________________________________________________

Category: 5 MP 360° surround view, vandal proof Fisheye fixed dome camera

Brand/Range name: 8000 Series FishEye

Supplier: Vivotek

Camera name: FE8172V

Resolution: 5 megapixel Progressive Sensor (1920x1920)

Auto/Manual focus: Manual focus

Onboard storage: Yes (MicroSD/SDHC/SDXC card slot) 2TB max.

Onboard intelligence: Video motion detection, camera tampering detection

Standards supported: H.264, MJPEG, MPEG-4, ONVIF, 802.3af, IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

Description: Vivotek FE8172V is the latest fisheye fixed dome network camera, featuring a detailed 5 megapixel resolution sensor with superb image quality. Equipped with a fisheye lens for 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount) without blind spots, the camera is able to provide coverage of wide, open areas, such as airports, shopping malls, parking lots, retail stores, offices and more.

Variations in range: FE8171V, CC8130

Contact: Alex Bantjes, +27 (0)12 657 0960, alex@miro.co.za

________________________________________________________________________________

Category: 5 MP bullet network camera, 30m IR, Smart Focus System, WDR, IP67

Brand/Range name: 8000 Series Bullet

Supplier: Vivotek

Camera name: IP8372

Resolution: 5 megapixel (2560x1920)

Auto/Manual focus: Remote focus (auto focus)

Onboard storage: Yes (MicroSD/SDHC/SDXC card slot) 2 TB max.

Onboard intelligence: Video motion detection, camera tampering detection

Standards supported: H.264, MJPEG, MPEG-4, ONVIF, 802.3af, IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

Description: Vivotek IP8372 is an IP67 rated outdoor bullet camera offering 5 megapixel resolution with up to 30 fps (1080P) and built-in IR illuminators. The Smart Focus System allows for easy installation and adjustment by adopting a lens with a built-in stepper motor that can remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. The IP8372 is also equipped with a mounting bracket that conceals all cables within.

Variations in range: IP8362, IP8352, IP8335H, IP8332, IP8330, IP8331

Contact: Alex Bantjes, +27 (0)12 657 0960, alex@miro.co.za

________________________________________________________________________________

Category: 5 MP full HD, Smart Focus System, fixed dome network camera

Brand/Range name: 8000 Series Dome

Supplier: Vivotek

Camera name: FD8372

Resolution: 5 megapixel (2560x1920)

Auto/Manual focus: Remote focus (auto focus)

Onboard storage: Yes (MicroSD/SDHC/SDXC card slot) 2 TB max

Onboard intelligence: Video motion detection, camera tampering detection

Standards supported: H.264, MJPEG, MPEG-4, ONVIF, 802.3af, IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X

Description: Vivotek FD8372 is an IP67 rated indoor/outdoor dome camera offering 5 megapixel resolution with up to 30 fps (1080P) and built-in IR illuminators. The Smart Focus System allows for easy installation and adjustment by adopting a lenswith a built-in stepper motor that can remotely control the focal length and precisely adjust the camera focus, offering hassle-free installation and maintenance. The IP8372 is also equipped with a mounting bracket that conceals all cables within.

Variations in range: FD8362E, FD8162, FD8335H, FD8134V, FD8134, FD8151V, FD8136

Contact: Alex Bantjes, +27 (0)12 657 0960, alex@miro.co.za

________________________________________________________________________________

Category: IndigoVision 2MP IP bullet camera

Brand/Range name: IndigoVision BX Range

Supplier: IndigoVision

Camera name: BX600HD

Resolution: 2MP

Auto/Manual focus: Remote zoom and focus

Onboard storage: Yes up to 32GB Micro SD card not included

Onboard intelligence: Motion detection

Standards supported: H.264/Mjpeg. Audio G.711, ONVIF

Description: The BX range cameras are IndigoVision’s HD and full HD range of ONVIF conformant cameras supported by the reliable SMS4software management platform. Includes wide dynamic range with IR and a true day/night mechanical IR cut filter. The unit is IP66 rated with a 3mm-9mm vari-focal lens.

Variations in range: BX 500 the full HD PTZ option with 20x optical zoom. BX400 is an indoor/outdoor mini dome option with vandal proof models rated at IK10

Contact: Kershia Kistan, Reditron, 087 802 CCTV (2288), sales@reditron.co.za

________________________________________________________________________________

Category: IP 360° megapixel camera

Brand/Range name: AV365CO

Supplier: Arecont Vision

Camera name: H.264SurroundVideo

Resolution: 8 megapixel

Auto/Manual focus: Manual

Onboard storage: No

Onboard intelligence: Yes. 360° view, extended motion detection grid. Privacy masking.

Standards supported: H.624 and MJPEG

Description: An area typically requiring multiple PTZ cameras or multiple fixed cameras can be covered with a single panoramic camera. It delivers comprehensive coverage with forensic detail – all without the need for an operator or control software. A cost efficient solution, SurroundVideo panoramic cameras virtually obsolete the need and related expense of PTZ cameras. For applications that require critical detail like licence plate recognition, combine the panoramic camera with single sensor megapixel cameras at entrance and exit points.

Variations in range: 180° versions, 360° versions, 8 MP or 20 MPDay/Night versions

Contact: Kershia Kistan, Reditron, 087 802 CCTV (2288), sales@reditron.co.za

________________________________________________________________________________

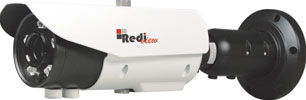

Category: IP bullet cameras

Brand/Range name: Rediview IP bullet

Supplier: Reditron

Camera name: RVIP-IRB-Mini

Resolution: 1.3Megapixel

Auto/Manual focus: Manual Vari focal Lens

Onboard storage: Yes. Micro SD/HC 64 GB

Onboard intelligence: Yes. Masking 5 user-defined areas.

Standards supported: H.264 / MJPEG – ONVIF V2.1

Description: Latest sensor technology with 720p resolution. 100% fully functional IP camera with browser support, ONVIF compliance, and embedded Flash technology inside. Offering 3-axis movement. High Powered IR LED for night vision. Supporting PoE or 12V for the most simple of installation. Safari, Chrome, IE, Firefox, Opera: all browser compatible.

Variations in range: 1.3 MP HD 30-50m IR; 2 MP FHD 30-50m IR; 3 MP FHD 30-50m IR

Contact: Kershia Kistan, Reditron, 087 802 CCTV (2288), sales@reditron.co.za

________________________________________________________________________________

Category: Sony SNC-EP550 IP HD PTZ with 28X optical zoom

Brand/Range name: Sony Ipela

Supplier: Reditron

Camera name: SNC-EP550

Resolution: 720p

Auto/Manual focus: Auto

Onboard storage: Yes up to 32 GB

Onboard intelligence: Intelligent motion detection. Filters out normal false alarms normally associated with motion detection.

Standards supported: MPEG4, H.264, JPEG. ONVIF.

Description: The EP550 is a cost effective HD network PTZ that supports 28x optical zoom. It includes Wide D technology from sony @ 86dB. The PTZ has a 340°-pan area. SD card slot for local storage is also present.

Variations in range: EP-521 – 4sif IP PTZ with 36X optical zoom; EP-580 – Full HD IP PTZ with 20x optical zoom; ER range support full 360 degree pan

Contact: Kershia Kistan, Reditron, 087 802 CCTV (2288), sales@reditron.co.za

________________________________________________________________________________

Category: IP megapixel

Brand/Range name: NetFocus NS Series

Supplier: ForeTech

Camera name: NFTI-H2100

Resolution: Real-time HD video streams of 1080p – 2.0 MP

Auto/Manual focus: Auto focus

Onboard storage: Yes, 32 GB

Onboard intelligence: Yes. Pattern tours, analytics.

Standards supported: PoE high power, iPv4, iPv6

Description: X20 HD IP outdoor camera; Real-time HD speed dome camera; Triple codec, simultaneous multi streaming; Local SD card backup; PoE

Variations in range: N/A

Contact: Riaan van der Merwe, Secequip, +27 (0)82 904 1150, +27 (0)11 624 2576, riaan.vandermerwe@secequip.co.za

________________________________________________________________________________

Name of software: NetFocus

Description/purpose: Hybrid recording / display

Features/functionality: Image enhancement by Intelligent noise filtering; Intelligent video analytics; Dual monitor; Thumb nail preview search; Digital camera zoom; CMS/Web/mobile viewing and e-Map monitoring; Wide range of IP camera options and NetFocus IP camera integration

Availability: PC based/embedded

Cost: No licence fee; Unlimited cameras

Runs in browser or as an independent application? Independent application and browser

Standards the software adheres to: ONVIF/CAMS

Contact: Riaan van der Merwe, Secequip, +27 (0)82 904 1150, +27 (0)11 624 2576, riaan.vandermerwe@secequip.co.za

________________________________________________________________________________

Category: Analogue. Extreme long-range IR camera PTZ

Brand/Range name: COP PTZ speed dome

Supplier: COP Security

Camera name: 15-AS55L

Resolution: High horizontal resolution 550TV lines

Auto/Manual focus: Auto focus

Onboard storage: No

Onboard intelligence: No

Standards supported: N/A

Description: Extreme long-range IR positioning high speed PTZ camera 432x power zoom; ¼-inch progressive scan CCD; Super high power Infrared Length LEDs @ 200m; Electronic image stabiliser; WDR support; 8 privacy mask zones; 3D co-ordinate; 128 pre-set positions; Pan range 0° ~ 360°, speed 300°/s; Tilt range +45° ~ -50°, speed 0,5° ~ 60°/s; RS-485 multi-protocols communication

Variations in range: N/A

Contact: Riaan van der Merwe, Secequip, +27 (0)82 904 1150, +27 (0)11 624 2576, riaan.vandermerwe@secequip.co.za

________________________________________________________________________________

Category: Analogue. Intelligent IR PTZ camera

Brand/Range name: COP PTZ speed dome

Supplier: COP Security

Camera name:15-CD60W-1020

Resolution: High horizontal resolution 530TV lines.

Auto/Manual focus: Auto focus

Onboard storage: No

Onboard Intelligence: Yes. Y-WDR, masking, pattern tours.

Standards Supported: N/A

Description: Colour/mono. external super high speed dome 432x power zoom – 36X optical, 12X digital; Electronic image stabiliser; 120-150m IR range with 72 IR LED; Programmable IR schedule, IR distance; Programmable 220 pre-set positions, 4 pattern tours, each 180s memory; 8 Cruising tracks with 32 pre-set positions each; 8 Privacy Mask Zones; IR LED service life >30000 hours

Variations in range: N/A

Contact: Riaan van der Merwe, Secequip, +27 (0)82 904 1150, +27 (0)11 624 2576, riaan.vandermerwe@secequip.co.za

________________________________________________________________________________

Category: Analogue Street surveillance all-in-one camera.

Brand/Range name: COP Camera

Supplier: COP Security

Camera name: 15-CO43RVIC

Resolution: Super High resolution CCD with Star-Light more than 600TV lines (D/N) video digital signal processor (SOC) IC.

Auto/Manual focus: Manual focus.

Onboard storage: No

Onboard intelligence: Yes. Y-WDR, HDR.

Standards supported: N/A

Description: High sensitivity/resolution HDR Wide Dynamic ICR camera in external water proof housing with high power IR LEDs; Motion detection, privacy marking, H/V mirror, rotation, freeze, negative, cross line; 2X digital zoom with manual pan/tilt; Challenging high lighting condition; Auto/manual electronic shutter speed adjustable; OSD setup menu; S/N radio with auto 3D-DNR; Built in video.

Variations in range: N/A

Contact: Riaan van der Merwe, Secequip, +27 (0)82 904 1150, +27 (0)11 624 2576, riaan.vandermerwe@secequip.co.za

________________________________________________________________________________

Category: IP, megapixel

Brand/Range name: NetFocus NS Series

Supplier: ForeTech

Camera name: NFIB-H2000ATIR

Resolution: Real-time HD video streams of 1080p – 2.0 MP.

Auto/Manual focus: Auto focus

Onboard storage: Yes. 32 GB SD Card

Onboard intelligence: Yes. Masking, analytics.

Standards supported: ONVIF, PoE high power, iPv4, iPv6.

Description: 2 mega-HD IR bullet camera; Real-time high definition dome camera; Triple codec, simultaneous multi streaming; Day & night by ICR; PoE; Auto focus; Weatherproof design

Variations in range: N/A

Contact: Riaan van der Merwe, Secequip, +27 (0)82 904 1150, +27 (0)11 624 2576, riaan.vandermerwe@secequip.co.za

________________________________________________________________________________

Category: IP, megapixel

Brand/Range name: NetFocus NS Series

Supplier: ForeTech

Camera name: NFIN-H2000ATIR

Resolution: Real-time HD video streams of 1080p – 2.0 MP

Auto/Manual focus: Auto focus

Onboard storage: Yes. 32 GB SD Card.

Onboard intelligence: Yes. Masking, analytics.

Standards supported: OnVIF, PoE high power, iPv4, iPv6

Description: 2-mega HD fixed IP dome camera; Real-time HD definition; Triple codec. Simultaneous multi streaming; Local SD card backup; Day & night by ICR; PoE; Bidirectional audio; 90° tilting; Vandal & weatherproof design; Auto focus

Variations in range: PoE /12V.

Contact: Riaan van der Merwe, Secequip, +27 (0)82 904 1150, +27 (0)11 624 2576, riaan.vandermerwe@secequip.co.za

________________________________________________________________________________

Category: Customisable dual sensor optical and thermal integrated PTZ system

Brand/Range name: Ascendent (Canada)

Supplier: Securitell

Camera name: Ranger-37X-TI: Electro-Optic PTZ Camera

Resolution: Optical: 600TVL (day) / 700TVL (night) Thermal: FLIR Generation 2, 17μm pixel pitch.

Auto/Manual focus: Auto focus

Onboard storage: No

Onboard intelligence: No

Standards supported: PTZ communication via RS-485 / RS-422, Pelco-P/D standard protocol. IP streamer available.

Description: The system boasts a 37X optical 3.5mm-129.5mm IR corrected continuous zoom lens, with ultra-high resolution colour CCD and a highly tuned thermal imager for true 24/7 performance. Integrating these two sensors provides unparalleled performance resulting in accurate detection, recognition, and identification of intruders. All of this is integrated into an IP 66 housing constructed of strengthened aluminium with alloy treated anti-corrosive coating.

Variations in range: Customisable to suite your requirements. Suitable for fixed installations as well as portable, and rapid deployment scenarios.

Optional: Various fixed thermal lenses; Optical zoom thermal lenses; 336x256 FLIR thermal imager; 640x480 FLIR thermal imager; Radar integration ; Image stabilisation; Heater or blower; Wiper; Pelco D, advanced protocol; Analogue to IP converter

Contact: Sam Lessing, Securitell, +27 (0)82 556 6565, info@securitell-int.com

________________________________________________________________________________


Credit(s)




Share this article:
Share via emailShare via LinkedInPrint this page



Further reading:

TAPA: The role of an effective treasury function in business risk management
June 2019, Technews Publishing , News
Neil Le Roux, the Founder of Diligent Advisors will speak at the TAPA SA (Transported Asset Protection Association) annual conference on 26 July 2019.

Read more...
iLegal 2019: Enhancing and empowering your control rooms
July 2019, Technews Publishing , News, Conferences & Events
iLegal 2019 will be held on 12 September 2019 at The Rosebank Crowne Plaza in Johannesburg. iLegal is the surveillance industry’s premier one-day conference hosted jointly by Hi-Tech Security Solutions and Dr Craig Donald.

Read more...
Residential Estate Security Conference 2019: Managing for efficiency
July 2019, Technews Publishing , News, Conferences & Events
The Residential Estate Security Conference 2019 will be held on 20 August 2019, once again at the Indaba Hotel in Fourways, Johannesburg.

Read more...
Spending to save
August 2019, Technews Publishing , News
As residential estates and complexes grow like weeds across South Africa, often promoting themselves as more secure than a stand-alone house, many are finding that close proximity to a neighbour or a ...

Read more...
Risk assessment or product placement?
August 2019, Technews Publishing, Alwinco, SMC - Security Management Consultants , Editor's Choice, Security Services & Risk Management, Residential Estate (Industry)
Hi-tech security solutions asked a couple of experts to provide estate managers and security managers with some insights into what a ‘real’ risk assessment includes.

Read more...
How far are we really at with artificial intelligence?
August 2019, Axis Communications SA , Editor's Choice, CCTV, Surveillance & Remote Monitoring, IT infrastructure, Residential Estate (Industry)
Justin Ludik unpacks exactly how far AI has come and what it potentially can do for society and more importantly, surveillance.

Read more...
The importance of effective perimeter security
August 2019, Elf Rentals - Electronic Security Solutions, Stafix , Editor's Choice, CCTV, Surveillance & Remote Monitoring, Residential Estate (Industry)
Protecting the perimeter is critical for any residential estate; how does one go about making sure your perimeter is as secure as possible?

Read more...
Renewable energy for estates and homes
August 2019, Drensky Technologies, Technews Publishing, Specialised Battery Systems , Security Services & Risk Management
While individual homeowners might choose to install solar photovoltaic (PV) systems for when there’s load shedding or a power failure, for an entire estate to harness its energy requirements from solar, and particularly their crucial security systems, would require that a large area of the property be dedicated to solar panels.

Read more...
CathexisVision video management software
August 2019, Cathexis Technologies , Products, CCTV, Surveillance & Remote Monitoring
The CathexisVision IP video management software (VMS) helps clients get the most out of their surveillance investment and reap rewards for their companies.

Read more...
Capture every detail with Smart PIR kits
August 2019, Longse Distribution , Home Security, CCTV, Surveillance & Remote Monitoring, Residential Estate (Industry)
Longse Technology offers DIY smart security kits that are easy to install and offer a Wi-Fi range that can reach up to 300 metres.

Read more...
