Select technology: All | IP | Speciality | Thermal
Select brand: All | Dahua Technology | FLIR | Hikvision | Opgal Optronic Industries | Thermal Radar
Category: Thermal
Brand/Range name: Dahua Technology
Camera name: DH-TPC-BF1241 / DH-TPC-DF1241
Maximum resolution: Thermal: 256 x 192; Visual: 4 MP
Lighting Capabilities: IR with 30 m range
Onboard storage: microSD card, up to 256 GB
Onboard intelligence/analytics: General intelligence: tripwire and intrusion detection. Advanced intelligence: fire detection and alarm, human and vehicle classification, smoking detection, call detection
ONVIF conformant: Yes
Description: The Eco-Thermal Camera is an ideal choice for end-users who want high performance for surveillance but have budget constraints. Boasting a compact size and dual spectrum with the powerful combination of visible light and thermal imaging, this series integrates advanced Dahua video analysis and intelligent algorithms, providing a one-stop solution for small or medium-sized monitoring applications.
Variations in range:
• Thermal lens: 2/3,5/7/10 mm; Visible lens: 3/4/8/12 mm; Ingress protection: IP67
Contact:
Tel: +27 10 593 3242
Category: Thermal
Brand/Range name: FLIR
Supplier(s): Forbatt SA
Camera name: FB-618ID
Maximum resolution: 640 x 480 @ 25 fps
Lighting Capabilities: Long-Life uncooled VOx microbolometer
Software provided with camera: Free camera detection tools
Onboard intelligence/analytics: Region entrance/intrusion detection, crossover/fence trespassing, auto/manual depth setup, human and vehicle rules, hand-off target to autonomous PTZ tracking, tampering detection
ONVIF conformant: Yes
Description: Long trusted for protecting any perimeter application, all ID-series FLIR cameras feature advanced built-in analytics, eliminating false alarms up to ranges exceeding 200 metres (depending on the model).
Variations in range:
• Various resolution options ranging from CIF (340 x 280) to D1 (640 x 480); various lens options ranging from 3,7 mm to 24 mm; analytic and non-analytic variants
Contact: Sales
Tel: +27 11 469 3598
Category: Thermal

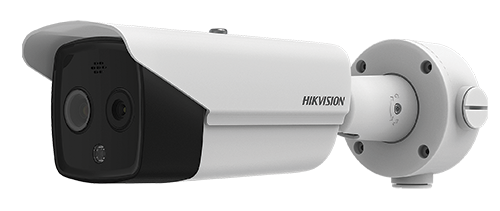

Brand/Range name: Hikvision
Supplier(s): ADI Global Distribution, Pinnsec, Regal Distributors SA, Sensor Security Systems
Camera name: DS-2TD2617-10/PA
Maximum resolution: Thermal channel: 160 x 120; Optical channel: 2688 x 1520
Lighting Capabilities: Colour: 0,0176 lux @ (F2.25, AGC on); B/W: 0,0035 lux @(F2.25, AGC on)
Software provided with camera: Hik-Central
Onboard storage: microSD/SDHC/SDXC card, up to 256 GB
Onboard intelligence/analytics: Line crossing, intrusion, region entrance, region exit, 8 VCA rules in total. Temperature measurement:10 points, 10 areas, 1 line
ONVIF conformant: Yes
Description: The DS-2TD2617-10/PA features behaviour analysis based on a deep learning algorithm, a temperature exception alarm and fire detection algorithm. It has image processing technology for linear, histogram and self-adaptive thermal AGC modes, DDE and 3D DNR.
Variations in range:
• 3 mm, 6 mm, 10 mm options, bullet and turret appearance options
Contact: Nick Wang
Tel: +27 72 238 8274
Category: Thermal

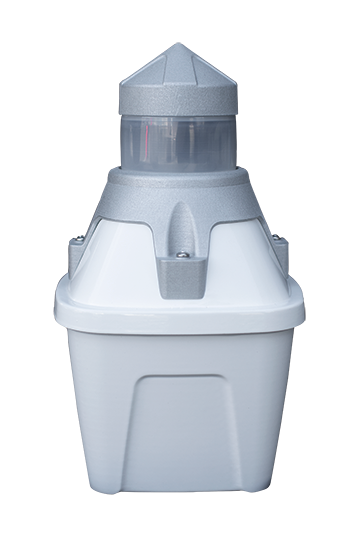

Brand/Range name: Thermal Radar
Supplier(s): XtraVision
Camera name: Series 6000
Maximum resolution: FPA resolution 640 x 512 pixels
Software provided with camera: The patent-pending Thermal Radar GUI integrates with VMS and PSIM platforms by displaying the full 360° detection area, integrated geospatial map and event alerts
Onboard intelligence/analytics: Proprietary adaptive analytics resulting in low false-positives; edge analytics for human, vehicle and fire detection; simultaneous detection of multiple targets
ONVIF conformant: Yes
Description: Thermal Radar is a network-based thermal surveillance and detection solution providing constant 360° situational awareness. By rapidly rotating a FLIR Boson thermal sensor and running edge analytics, Thermal Radar can be used as a standalone detection solution. It boasts geospatial location-based detection alerts, edge analytics for human, vehicle and fire detection and a patent-pending GUI feed displaying full 360° coverage.
Variations in range:
• Typical detection radius at 10 metre mounting height: TR6600 – 350 m; TR6400 – 290 m; TR6200 – 190 m
Contact: Nick Grange
Tel: +27 11 450 1056
Category: Thermal

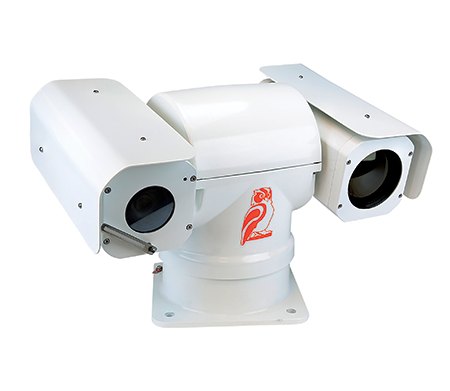

Brand/Range name: Opgal Optronic Industries
Supplier(s): XtraVision
Camera name: Accuracii Mini HD
Maximum resolution: Visual: 1920 x 1080; Thermal: 640 x 480
ONVIF conformant: Yes
Description: A compact, lightweight multi-sensor observation system whose variable speed pan/tilt unit provides continuous 360° rotation of the camera at up to 120°/sec on the pan axis and 90°/sec on the tilt axis. It includes a 1/2,8-inch colour camera for daytime threat detection and assessment, and supports networking via TCP/IP, UDP, DHCP, RTP and RTSP at 10/100 Mbps.
Variations in range:
• Available with a 17 μ 640 x 480 resolution thermal core. Comes in fixed FoV athermalised options of 25 mm, 35 mm, 50 mm, 60 mm and 100 mm, or continuous zoom and 26-105 mm autofocus
Contact: Nick Grange
Tel: +27 11 450 1056
