Surveillance for net zero container showroom

Issue 3 2022 Surveillance, Products & Solutions


Delta Thailand launched Thailand’s first Net Zero Container Showroom in Amata City, Chonburi, featuring solar power generation, battery management, EV charging, lighting management, indoor climate control and surveillance solutions. The core of the smart showroom is the scalable and modular Delta data centre solution which enables remote access to its security, lighting, environment and charging systems. VIVOTEK’s IP surveillance cameras and solutions were featured in the showroom as essential parts of Delta’s Smart Building Management solution.

The concept of Delta’s showroom is to showcase innovative, smart and green solutions with energy efficiency to commit to 100% renewable RE100 initiatives by 2030. A solar rooftop array coupled with a battery system provides the showroom with renewable energy 24/7, while a battery management system (BMS) combined with energy-efficient lighting and variable regulating valve (VRV) air-conditioners ensure optimal indoor air quality and temperature with minimised power and CO2 emissions. Smart monitoring, access control and building surveillance system are the keys and indispensable to bring such a complex system together as a solution.

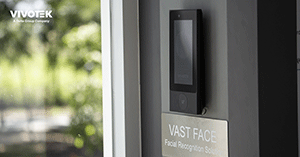

VIVOTEK tailored a surveillance solution specifically for the showroom by addressing the most critical part of access with a counting solution, as well as corner-to-corner indoor and outdoor surveillance. VIVOTEK VAST Face facial recognition solution was included and was the first successful pilot project of its type in Thailand. It uses the FT9361-R facial recognition tablet and IE8213-FM content management system (CMS). The facial recognition tablet is installed at the entrance of the showroom to enhance the security and safety of access control.

The facial recognition solution is equipped with deep-learning AI that allows facial data storage of over 50 000 users with 99% accuracy of user detection rate, with or without a face mask. Users can also be allocated into independent groups to create VIP lists, blacklists and employee groups, essentially eliminating the need for a staffed front desk and the risk of contact.

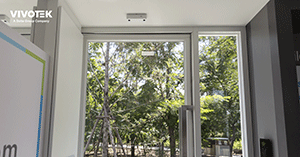

Both the entrance and exit points of the showroom are equipped with VIVOTEK SC8131 Stereo Counting network cameras armed with VIVOTEK’s 3D Depth Technology, providing real-time visitor counting and movement tracking while automatically filtering out non-human objects with 98% accuracy. Outdoor surveillance needs are fulfilled with the VIVOTEK CC9381-HV 180° panoramic network camera, which features 180° horizontal panoramic view, with built-in 180° IR illuminators up to 15 metres. This allows the comprehensive 24/7 surveillance coverage, no matter what the light conditions are during day or night.


The MA9321-EHTV multi-sensor 360° panoramic network camera is armed with a robust IP66 and IK-10 rated outdoor housing to withstand rain and dust as well as protect against tampering, enabling the camera to be integrated with Delta’s smart pole solution. With four independent 5 MP CMOS sensors, the MA9321-EHTV maximises surveillance coverage and monitoring flexibility by providing a full 360° angle-to-angle video surveillance coverage from a single IP address, making it ideal for traffic intersections and the middle of parking lots.

Cameras installed outdoors and at the entrance feature VIVOTEK’s WDR Pro and Superior Night Visibility technologies to provide superior visibility in high-contrast lighting environments. Additionally, these camera models offer high video quality, with ultra-low bandwidth with Smart Stream III technology and H.265 compression. This reduces bandwidth and storage consumption by more than 90% while maintaining high-resolution quality video images compared to traditional H.264 streaming.

VIVOTEK solutions effectively enhance the security and safety of smart, green energy net-zero buildings while maintaining innovation and sustainability for smarter and greener businesses. Delta Thailand’s smart and green net zero showroom is an inspiring success story highlighting smart technologies with best practices in efficient energy-saving and zero carbon emission, leading the way on a net zero target for smarter, greener business and living in Thailand.
