Keypad/RFID reader

Issue 8 2020 Products

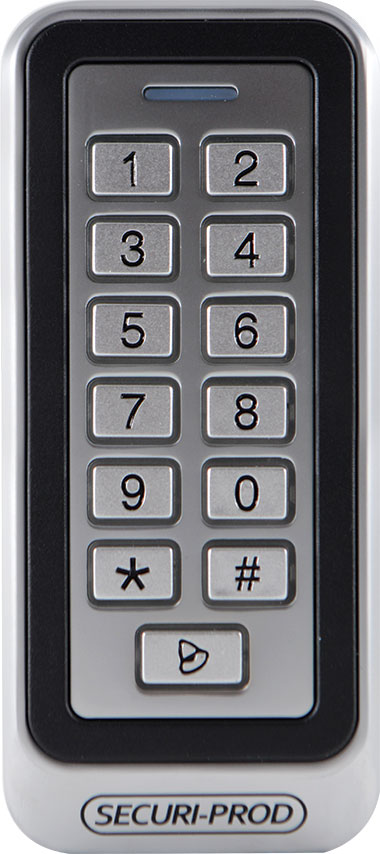

The Securi-Prod LK192-1 is a versatile keypad/RFID reader with selectable RFID card or PIN, or card and PIN operating modes. It also allows for Wiegand in or out connections. In Wiegand mode, you can use two keypads back to back, offering the customer a secure solution. It can also be connected to third-party access controllers. In standalone mode, you can use the two relays built into the keypad. This can control any fail-safe or fail-secure lock.

The Securi-Prod LK192-1 keypad/RFID reader has an IP65 rating and has a robust and durable, polished metal finish.

Product specifications

• Operating voltage: 12 V DC ±10%.

• Operating current: < 100 mA.

• User capacity: 2000 users.

• 2 relays, 1000 users each.

• Card type: EM card or tag.

• Reading range: 1–5 cm.

• Door sensor function.

• Alarm function.

• Doorbell feature.

• IP rating: IP65.
